SPECIFICATIONS

Audio Input/Output: 3.5mm Audio Jack *1

CPU: AMD Ryzen 7 7730U Processor, 8 Cores/16 Threads

Certification: CE

DP: DP1.4b*1 (4K@60Hz)

Graphics Card Type: Integrated Card

HDMI: HDMI 2.0*1 (4K@60Hz)

Hard Drive Capacity: 512GB

High-concerned chemical: None

Integrated Graphics Card: AMD Radeon Graphics(2000MHz,8CORES

LAN: 1*10/100/1000Mbps RJ45

Memory Capacity: 16 GB

Model Number: E3B

Origin: Mainland China

Ports 1: 10/100/1000Mbps RJ45 Gigabit Ethernet Port *1

Ports 2: USB3.2 Gen2 Type-A Port*2

Ports 3: USB3.2 Gen1 Type-A Port*4

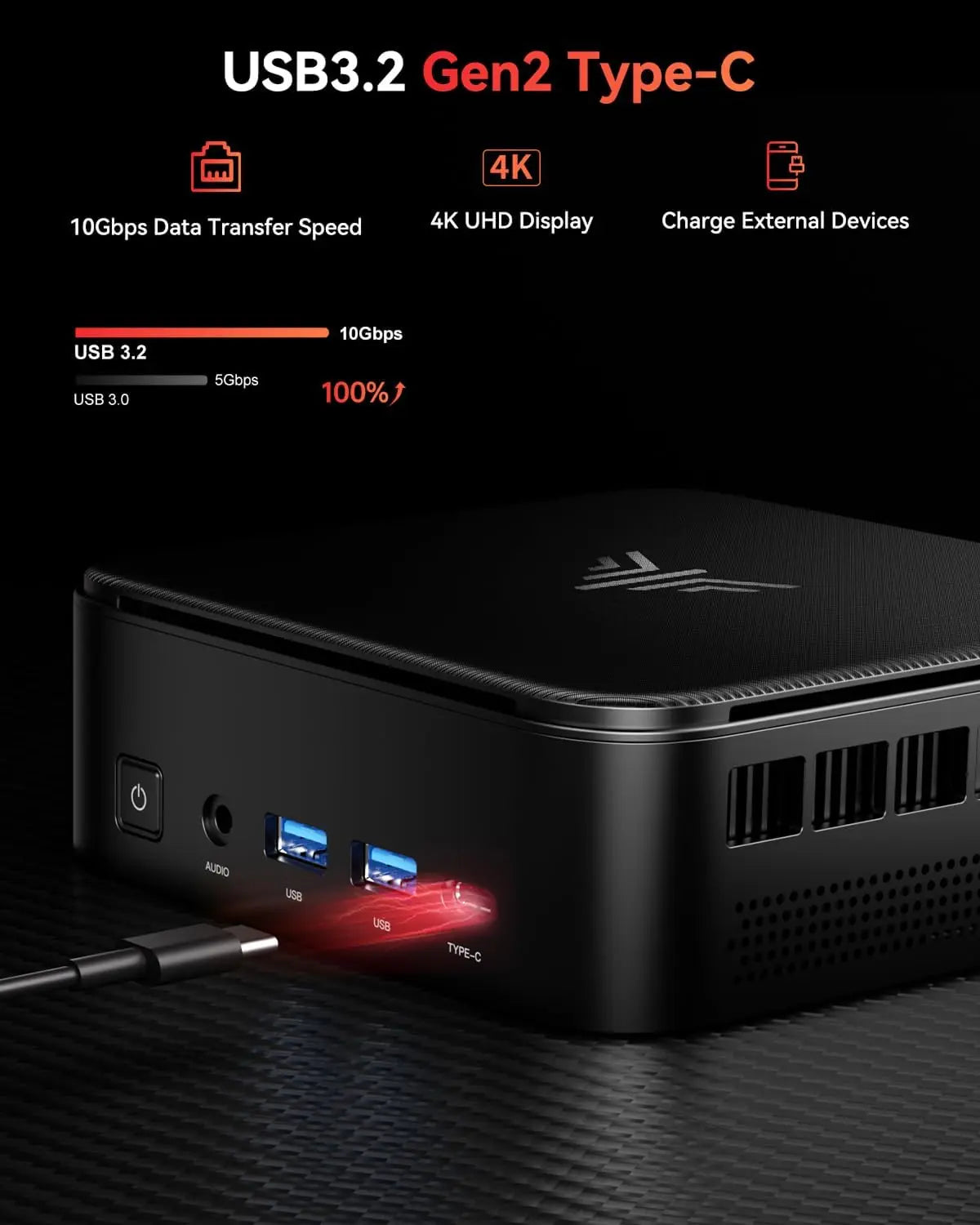

Ports 4: USB3.2 Gen2 Type-C (Support DP1.4, 4K@60Hz , MAX 10Gbps data transfer)*1

Power Supply: DC 19V/3.42A,DC Header 5.5*2.1mm

Processor Brand: AMD

Processor Main Frequency: 2.0GHz

Processor Model: AMD Ryzen 7 7730u

RAM: 16GB LPDDR4X 3733MT/s (Onboard)

ROM(M.2 SSD): 512GB/1TB M.2 2280 SATA SSD, MAX 4TB

TDP: TDP Max 28W

Type: Mini Desktop,Mini PC

USB-C: USB3.2 Gen2 Type-C *1 (4K@60Hz)

Use: Multimedia

Wireless Connectivity: WiFi 6+BT5.2(M.2 2230)

CPU:AMD Ryzen 7 7730U Processor, 8 Cores/16 Thread

Graphics: AMD Radeon Graphics ,2000MHz,8cores

Video output: HDMI 2.0 +USB3.2 Gen2 +DP1.4 (4K@60Hz）, Triple Display

RAM+Storage :16GB RAM +512GB M.2 2280 SSD

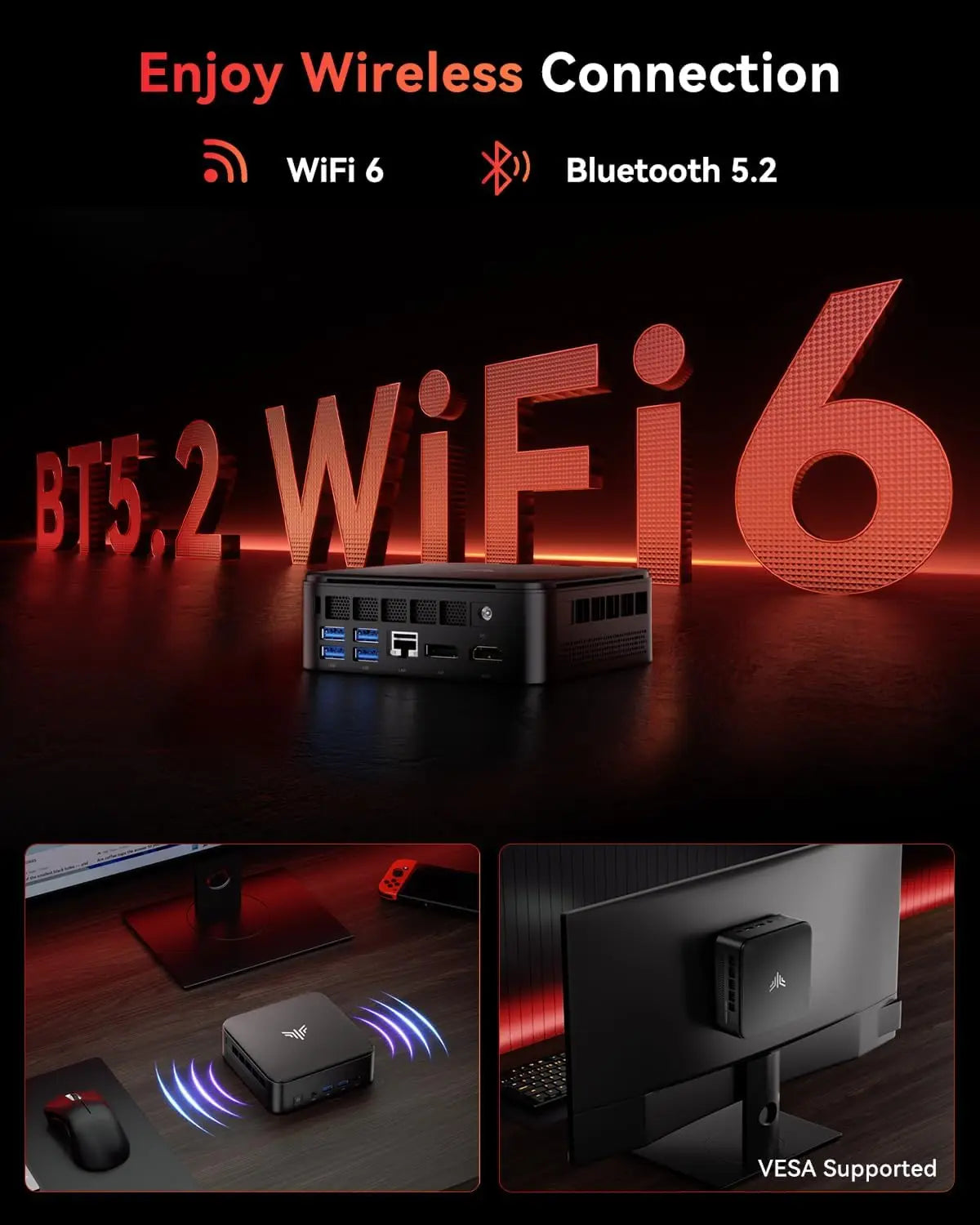

Networks:WiFi 6, BT5.2, 1000Nbps LAN

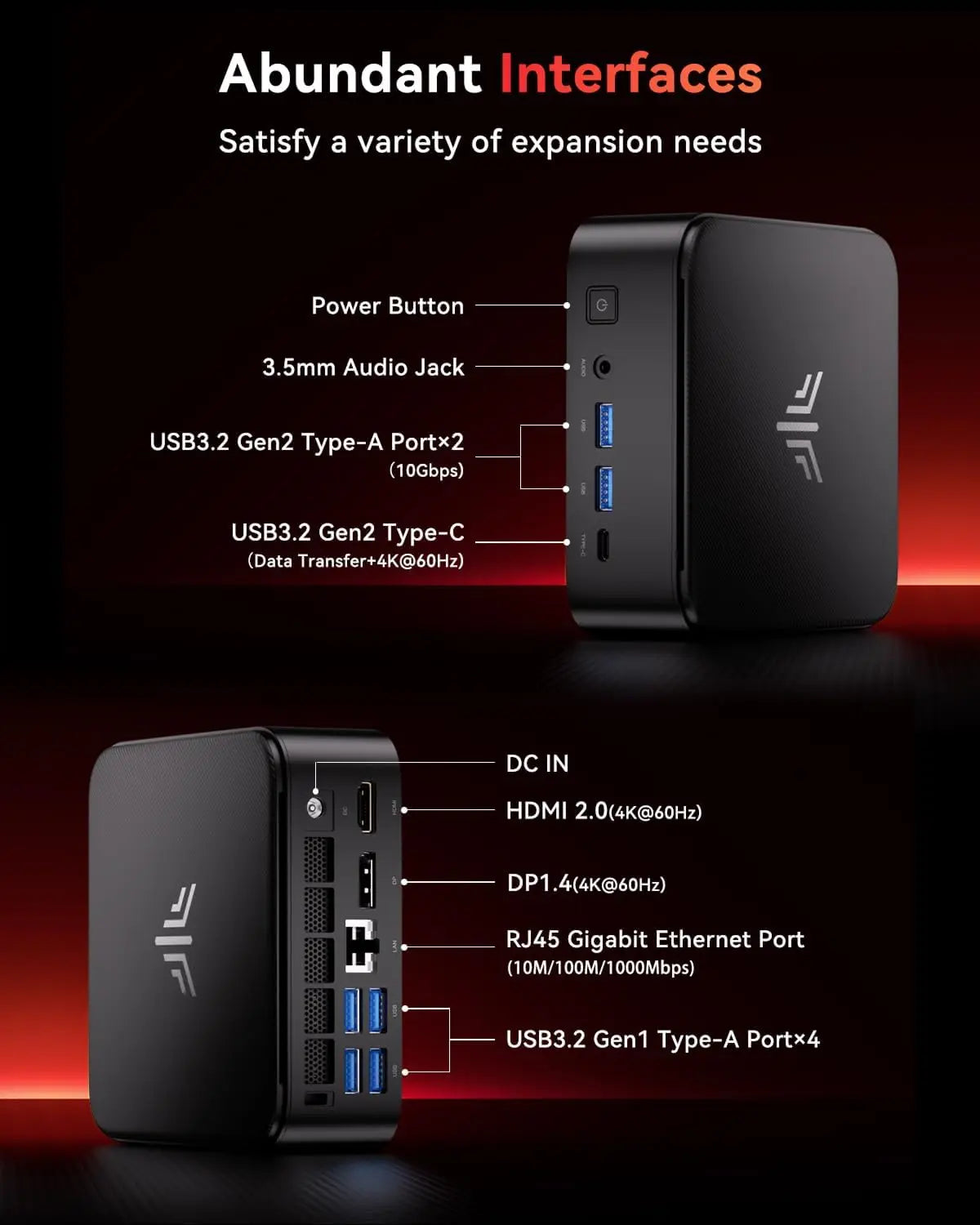

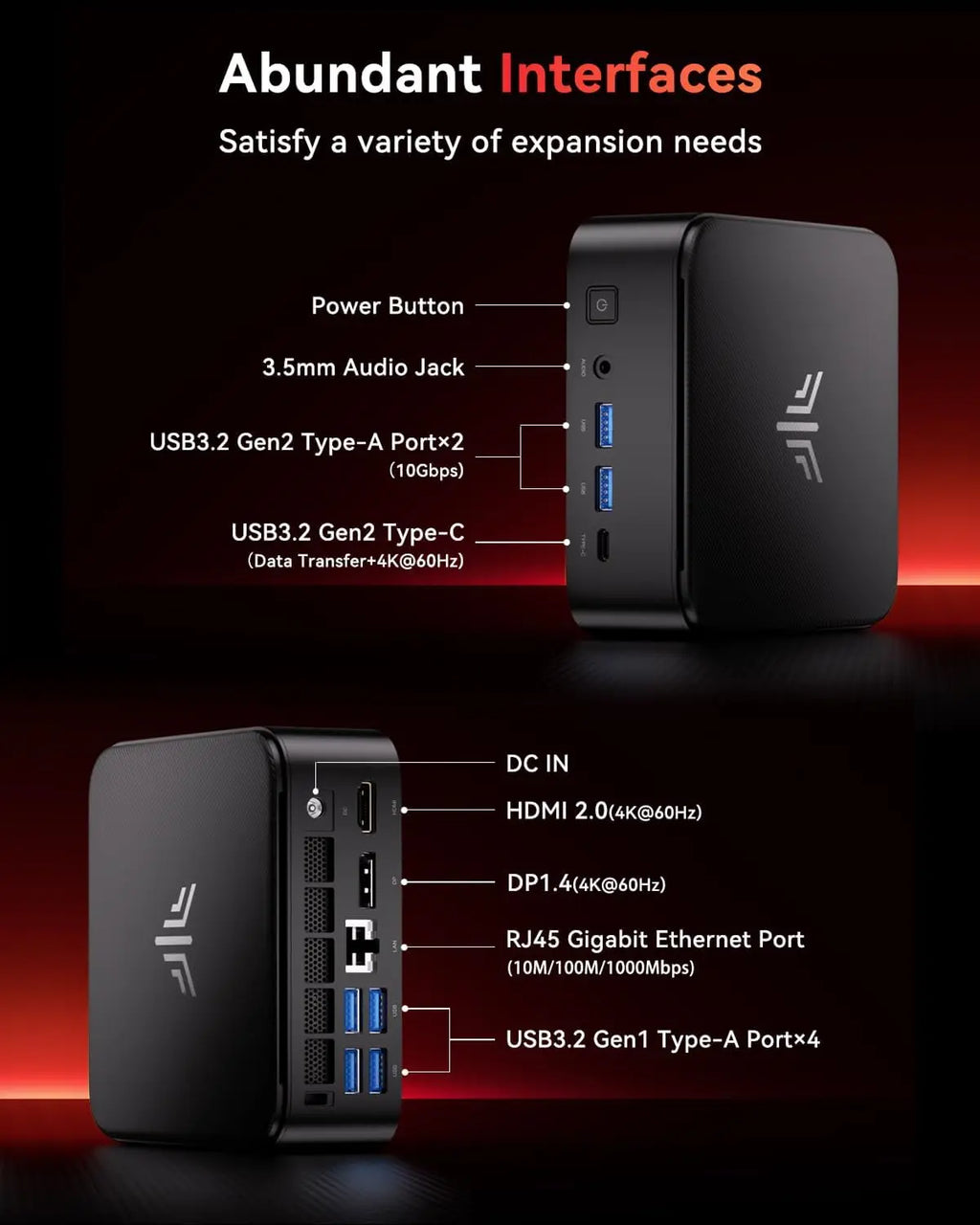

lnterface:2* USB3.2 Gen2(10Gbps),4* USB3.2 Gen1(5Gpbs),1*USB-C (10Gbps),1*DC IN, 1*HDMI 2.0, 1*DP1.4b, 1*3.5mm Audio Jack,1* Power Button.

Package Included :1 x E3B Mini PC, 1 x HDMI Cable, 1 x AC Cable, 1 x User Manual,1 x VESA Mount with Screws

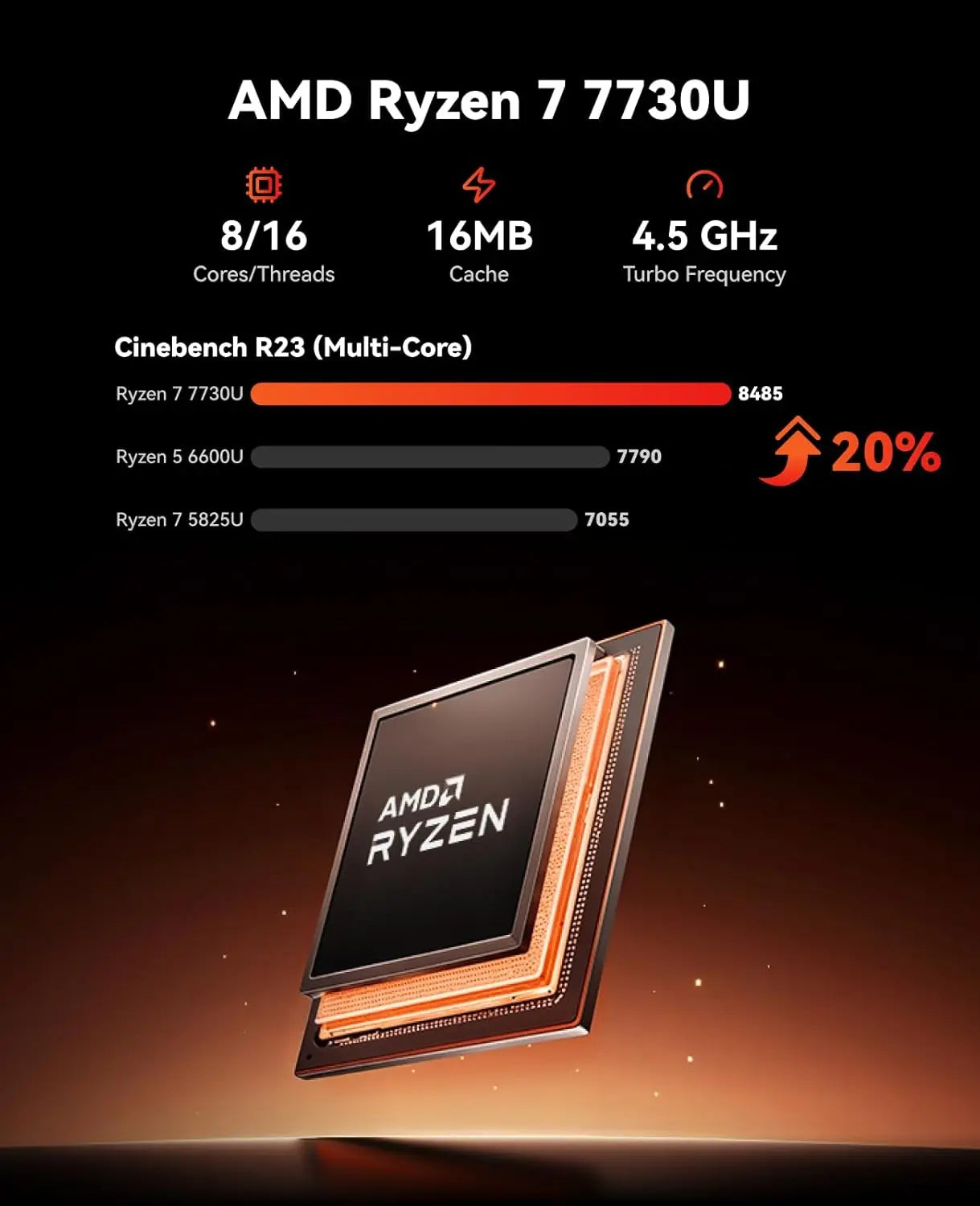

Exceeds RYZEN 7: The AMD Ryzen 7 7730U processor integrated in the E3B Mini PC is based on the Zen 3 architecture and offers superior single and multi-core performance (comparable to the Ryzen 7 5825U). With 8 cores, 16 threads and 16MB L3 cache, 15W low-power design easily handles multitasking and high-load applications. With a base clock frequency of 2.0 GHz, the processor achieves a maximum turbo clock of 4.5 GHz, which allows for instant performance boost for spontaneous tasks and high-load scenarios.
